The Aston Martin DB3 and DB3S Sports Car

Aston Martin DB3 Coupe Seen at the 2008 Silverstone Classic

from Classic to Modern

The Aston Martin DB3

THE CAR

The final evolution of the DB2 sports car, which was introduced in 1950, took the form of the DB2/4 Mark 3, production of which ended in 1959.

Although based on the DB2, the two seater Aston Martin DB3, launched in 1951, was the pure racing variant of which, by 1953, a total of ten cars had been built.

The first five racers were allocated as works cars, whilst the remaining five were sold into the open market.

Its racing debut was the 1951 Tourist Trophy, during which it was forced to retire.

In 1952, works DB3's, fitted with the 2.6 litre engine, finished second to fourth at Silverstone against stiff competition from Ferrari and Jaguar's C-Type.

In all, the DB3 sports car was unsuccessful on the track since, in most cases, it was forced to retire for any number of reasons.

The cars only major victory for Aston Martin was the 1952 Goodwood 9 Hour race.

THE ENGINE

The early DB3 was powered by a 2.6 litre, DOHC, straight six engine, as fitted to the DB2 Vantage, that developed 140 bhp at 5200 rpm, and produced a top speed of 131 mph, with 0-60 mph in 8.6 secs.

With a compression of 8.2:1, it was fitted with a five speed manual David Brown gearbox, had drum brakes all round, and an aluminium body on a tubular steel chassis.

However, it was soon found that the 2.6 litre unit was inadequate and, in mid 1952, it was replaced by the larger 2.9 litre engine, which produced 165 bhp.

A small number of DB3's were also produced as a coupe variant.

Technical Data                           DB3 DB3
Production 1951       1952- 1953
Engine, cc 2580 2922
Cylinders, bhp 6, 140 6, 165
Top Speed mph 131               135
0-60 mph, secs 8.6                 8.0

1959 Aston Martin DB3 Image

Full Screen

The Aston Martin DB3S

THE CAR

Due to its weight, the DB3 turned out to be uncompetitive.

However, introduced in 1953, the two seater DB3S sports car was the lightweight version of the DB3, fitted with a shorter wheelbase and lighter chassis.

By the time production ended in 1956, a total of 31 DB3S's had been built, of which 11 were the works variant (as two fixed head coupes and 9 open tops), with the remaining 20 being sold to customers (as 3 fixed head coupes and 17 open tops).

The coupe variant was more aerodynamic and with lower drag than the open top, and so produced a higher top speed.

Unfortunately, it tended to be less stable at high speed, resulting from additional lift.

In 1954, both works coupes were fitted with 225 bhp engines, which were then modified, by the addition of a supercharger, to develop an additional 15 bhp.

However, instability caused both cars to crash in that years Le Mans.

Reverting back to the open top variant, the DB3S scored a second placing in both the 1955 and 1956 Le Mans 24 Hour, with Stirling Moss at the wheel in the latter race.

The DB3S was succeeded by the enigmatic DBR1, which was victorious at Le Mans in 1959.

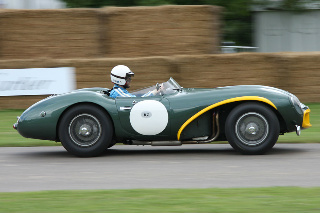

Aston Martin DB3S An impressive 1953-56 racer that created an enthusiastic crowd

THE ENGINE

The 2.9 litre, DOHC, straight six now developed 210 bhp at 6000 rpm, and produced a top speed of 145 mph.

With a compression of 8.7:1, it was fitted with a manual close ratio four speed David Brown gearbox, three Weber twin choke carburettors, disc brakes all round, and its aluminium body produced a curb weight of 914 kg.

Technical Data DB3S
Production 1953-1956
Engine, cc 2922
Cylinders, bhp 6, 210
Top Speed mph 140
0-60 mph, secs 6.6

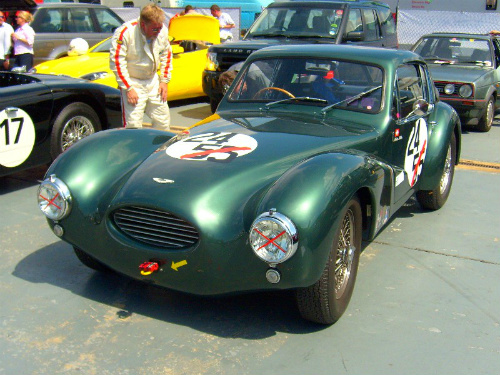

1955 Aston Martin DB3 Coupe Spotted at the Woodcote Trophy Race for Pre 56 Sportscars. Very Nice

1952 Aston Martin DB3

Aston Martin DB3 Image

Aston Martin DB3S Image

Full Screen Full Screen

COMPETITION

Chief amongst competitors for the Aston Martin DB3S were the following sports cars: Jaguar C-Type, and Ferrari 250 Testa Rossa

Jaguar Ferrari
Technical Data                       DB3S C-Type 250 Testa Rossa
Production 1953-1956 1951-1953     1957-1958
Engine, cc 2922 3442              2953
Cylinders, bhp 6, 210 6, 220           12, 300
Top Speed mph 140 144               162
0-60 mph, secs 6.6 6.5                 6.1
