The Morgan Sports Car
from Classic to Modern
The Morgan Three Wheelers
The Morgan sports car. During the 1930's, a range of Morgan Three Wheelers were introduced which, after suitable development, evolved into the Aero and Sports models.
They used a modified motorcycle engine which was cooled either by air or liquid. The engine was positioned ahead of the front wheels. Production of these V-Twin models ended in 1939.
In 1932, the F-series of Three Wheeler sports car was introduced, with the F4. It used a new steel chassis, a 4-cylinder Ford engine, and a four seater body.
A two seater F2 came in 1935, and a sporty F Super in 1937. Production of Three Wheelers ended in 1952.

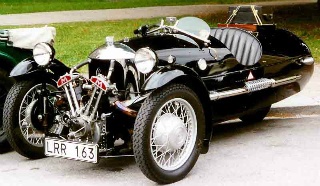

1937 Morgan Super Three Wheeler
Full Screen
The Morgan Four Four Series 1
The first four wheeled Morgan appeared in 1936, and was designated the Morgan 4-4 Series 1 (meaning 4 cylinders and 4 wheels).
Manufacture of both the 4-4 and Three Wheelers continued until 1952.
The Morgan 4-4 two seater was built between 1936-1950.

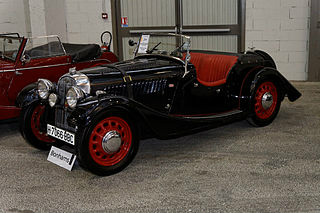

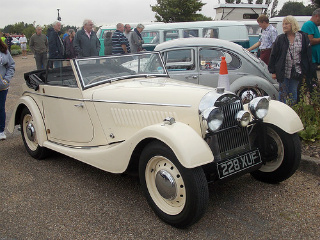

1950 Morgan 4/4 Series I Drophead Coupé Here is an immaculate example of this 1938-50 39 bhp, 1.2 litre, OHV classic of which only 164 were built. Beautiful in white
1947 Morgan Four Four Series 1
The Morgan Four Four Series 2
The Morgan 4/4 Series 2 sports car was introduced in 1955. It was a two seater with a three speed gearbox.
Similar in appearance to its predecessor, there were a number of changes, including use of the Morgan Plus 4 chassis.
4/4 Series 2 Technical Data
Production: 1955-1960
Output: 386
Engine: 1172 cc
Four Cylinder, 36 bhp
Top Speed: 75 mph
Time to 60 mph: 26.9 secs
1957 Morgan 4/4 Series 2
Full Screen
The Morgan Four Four Series 3
The Morgan 4/4 Series 3 sports car was launched in 1960.
The 1172 cc Ford side valve engine, fitted to the Series 2 car, was now replaced with the Ford 997 cc, 105E overhead valve unit, as used in the Ford Anglia saloon. It was fitted with a single Solex carburettor.
Furthermore, the previous Ford three speed gearbox was now replaced by a Ford four speed unit.
4/4 Series 3 Technical Data
Production: 1960-1961
Output: 58
Engine: 997 cc
Four Cylinder, 39 bhp
Top Speed: N/A
Time to 60 mph: N/A
Full Screen
The Morgan Four Four Series 4
The Morgan 4/4 Series 4 sports car was introduced in 1961, and was fitted with a 1.3 litre, overhead valve Ford engine, with a four speed gearbox, as used in the Ford Consul Classic saloon.
Still fitted with a single Stromberg carburettor, it developed 62 bhp at 5000 rpm, an increase of 23 bhp over the Series 3 variant.
4/4 Series 4 Technical Data
Production: 1961-1963
Output: 114
Engine: 1340 cc
Four Cylinder, 62 bhp
Top Speed: 80 mph
Time to 60 mph: 18.6 secs
1963 Morgan 4/4 Series 4
Full Screen
The Morgan Plus Four Super Sports
Also, in February 1961, the Morgan Plus Four Super Sports was launched to an expectant market.
It was fitted with a modified 2138 cc, 4-cylinder Triumph TR2 engine, with two twin choke Webber 42DCOE carburettors, which developed 125 bhp at 5500 rpm, and produced a top speed of 118 mph.
It was, in essence, a Morgan Plus Four that had been modified following requests for a road version of Chris Lawrence's 1959 successful competition car.
Full Screen
The Morgan Four Four Series 5
The Morgan 4/4 Series 5 sports car was launched in 1963. It was powered by the Ford 116E, 1.5 litre, overhead valve engine, as used in the Ford Cortina saloon, together with a Ford four speed gearbox.
Fitted with a single Stromberg 33VN carburettor, it developed 65 bhp, and 86 ft/lbs of torque. The competition variant produced a top speed of 98 mph.
4/4 Series 5 Technical Data
Production: 1963-1968
Output: 639
Engine: 1498 cc
Four Cylinder, 65 bhp
Top Speed: 85 mph
Time to 60 mph: 17.0 secs

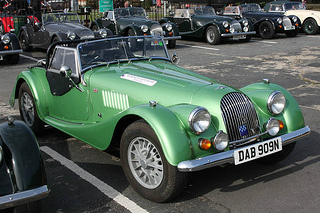

1968 Morgan 4/4 Series 5
Full Screen
The Morgan Plus Four Plus
In 1964, a version of the Morgan Plus 4 was introduced, and was designated the Morgan Plus 4 Plus.
It was a two seater coupe with a fibreglass body, giving it both lightweight and reduced drag characteristics.
However, it did not sell since the use of fibreglass instead metal moved away from the Morgan concept, and alienated many ardent followers.
Plus 4 Plus Technical Data
Production: 1964-1967
Output: 26
Engine: 2138 cc
Four Cylinder, 104 bhp
Top Speed: 115 mph
Time to 60 mph: 14.0 secs

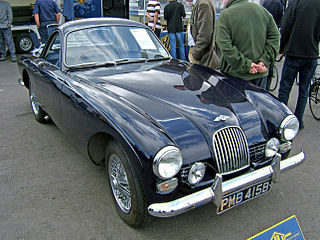

Morgan Plus 4 Plus
The Morgan Four Four 1600
In 1968, the Morgan 4/4 1600 sports car was introduced. It was offered as a two and four seater convertible.
Between 1968 and 1993, it used a variety of 1.6 litre power units, such as:
- 1968 - Ford 1599 cc unit developing 70-95 bhp
- 1981 - Fiat 1584 cc twin cam unit developing 98 bhp
- 1982 - Ford 1597 cc
- 1991 - Ford 1597 cc with fuel injection developing 100 bhp

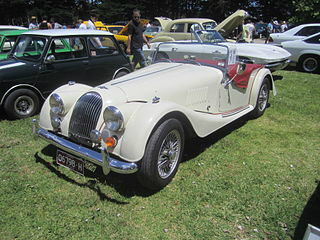

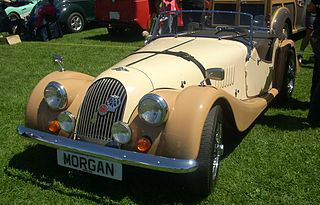

1974 Morgan 4/4 1600
The Morgan Four Four 1800
In May 1993, the Morgan 4/4 1800 was launched. The previous Ford 1597 cc, fuel injected CVH engine, was now replaced by a Ford 1796 cc, 4-cylinder, 16 valve, Zetec engine.
Using a Ford five speed gearbox, output was increased from 100 to 114 bhp at 5750 rpm, which produced a top speed of 111 mph, and a 0-60 time of 7.8 secs.
Production of this variant ended in 2006.
Full Screen
The Early Morgan Plus Four
In 1950, the Morgan Plus 4 sports car was launched. It used the larger (hence the plus) 2.1 litre Standard Vanguard engine, whilst the 4-4 used a Standard Special 1267 cc unit.
In 1953, the 1991 cc Triumph TR3 engine was added to produce a higher performance model. Two and four seater convertibles and drop head coupes were available.
The Early Morgan Plus Four covered the period 1954 to 1969, which included the transition between the model being powered by the original 2088 cc Standard Vanguard engine, and the later range of Triumph TR2 to TR4A units.
Plus 4 Technical Data
Production: 1950-1961
Output: 4,584
Engine: 2088 cc
Four Cylinder, 68 bhp
Top Speed: 85 mph
Time to 60 mph: 14.1 secs
Full Screen
The Later Morgan Plus Four
The Later Morgan Plus Four referred to the period 1969 and 2000 during which the Triumph TR powered model was replaced by a similar sized unit sourced from both Fiat and Rover.
It also represented the final demise of the Plus Four, and its ultimate reincarnation in the form of the Morgan Plus 8 sports car.

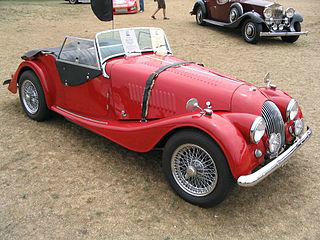

2009 Morgan Plus 4
Full Screen
The Early Morgan Plus 8
By 1968, the growing unavailability of large four cylinder engines caused Morgan to add the Rover 3.5 litre, V8 unit with two SU carburettors, into the Plus 4. Hence, the Morgan Plus 8 was born.
|
Plus 8 Technical Data |
Plus 8 Technical Data |
The Early Morgan Plus 8 sports car covered the period between its introduction in 1968, and its ensuing developments up to the point at which , in 1987, all Plus 8's were fitted with Bosch fuel injection.
This represented an important milestone.

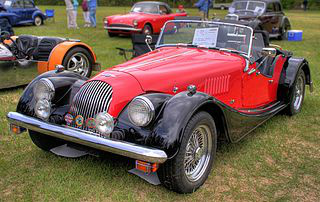

1974 Morgan Plus 8
|
|
Full Screen
Full Screen Full Screen
The Later Morgan Plus 8
In 1990, a 3.9 litre version of the Rover engine, with Lucas fuel injection, was added to the Plus 8.
The Later Morgan Plus 8 sports car covered the period between the introduction of fuel injection to all Plus 8's in 1987, through the various technical developments, to the final demise of the model in 2004.
Plus 8 Technical Data
Production: 1986-2004
Output: 6000 (all years)
Engine: 3947 cc
Eight Cylinder, 190 bhp
Top Speed: 121 mph
Time to 60 mph: 6.1 secs
1993 Morgan Plus 8
Full Screen
In 1997, the car was offered, as an optional extra, with a 4.6 litre, fuel injected engine, which developed 220 bhp, and 260 ft/lbs of torque. This produced the highest performing Plus 8 sports car with a top speed of 128 mph, and a 0-60 mph time of 6.0 secs.
Full Screen
During the period 1950's to 1960's, almost all sports car production was exported to the US.
Following a halt in exports due to US emission control regulations, from 1974 to 1992, exports to the US of Plus 8 sports cars had their engines modified, by local dealers, to run on propane gas.
In this way, there was no infringement of emission regulations. Exports to the US finally ended in 2004 when the Plus 8 was discontinued.
The Morgan Aero 8

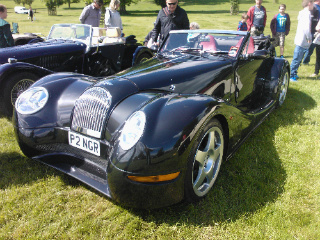

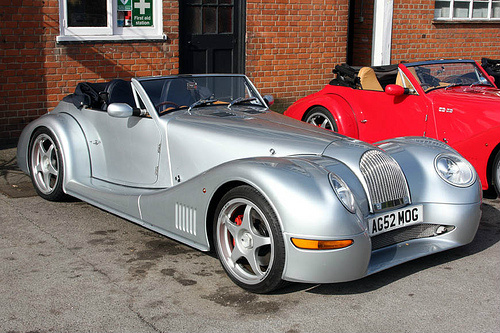

2001 Morgan Aero 8 This very impressive 2-door convertible was powered by a 286 bhp BMW 4.4 litre V8 with a 150 mph top and 0-60 in 4.8 secs. Eye catching
.
