The Ferrari Dino 206 GT Sports Car

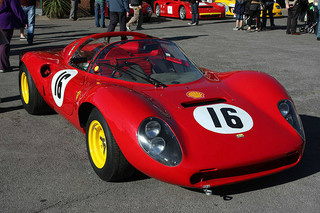

Dino 206 S Image

from Classic to Modern

Background

Aimed at the affordable sports car market, the Ferrari Dino was the right car at the right time to establish a new trend and, importantly, increase company sales.

Furthermore, Enzo Ferrari's son and heir, Dino, had leant his name to the car.

The original Dino was also known as the 206 GT, in which "20" referred to the litre capacity of the engine, and "6" indicated the number of cylinders.

It was the first Ferrari to be built in sizeable numbers.

THE CAR

The Dino 206 S

In 1967, Ferrari wanted to enter one of their cars, powered by a Dino V6 engine, in the 1.6 litre Formula 2 Series.

However, in order to satisfy the homologation rules (certification to race), the company would have to produce 500 of the cars using the V6 engine.

Since this was not feasible, Fiat agreed to produce a sports car powered by the V6 unit, which they would name the Fiat Dino.

Under this arrangement, Ferrari was able to compete with their own sports car, the Ferrari Dino 206 GT.

Both sets of engines were produced by Fiat, who simply dispatched the first 150 units to Ferrari in early 1968.

The first prototype, designated the 206 SP (where "S" and "P" referred to Spyder convertible, and Prototype), was introduced at the 1965 Paris Motor Show, and incorporated a traditional tubular steel chassis with a 90 inch wheelbase, in which the engine was positioned transversely.

The final production version was launched in 1968.

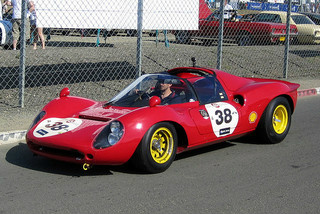

Dino 206 S Image

Full Screen Full Screen

The Dino 206 GT

The Ferrari Dino 206 GT was a two seater, fixed head coupe, designed by Pininfarina, with an emphasis on rounded edges and smooth curving lines, which was characteristic of earlier Italian cars.

This body styling drew much praise and, even to this day, is regarded as a design classic.

It had coil spring independent suspension all round, with telescopic dampers, anti-roll bars front and rear, disc brakes on all four wheels, and knock-off alloy wheels.

An interesting feature was its lightweight body that was made of aluminium, which was unusual since nearly all Ferrari's built around that time used steel body panels.

Launched in 1968, by the time production ended in 1969, a total of 152 units had been built, and all with left hand drive.

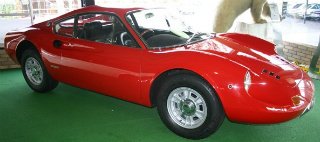

Dino 206 GT Image

Full Screen

THE ENGINE

This mid-engined sports was powered by an all aluminium 2 litre, chain driven, twin overhead cam, V6 unit, with a compression ratio of 9.7:1.

Fitted with three twin choke Weber 40 DCN/4 carburettors, and using a four bearing crankshaft, this developed 177 bhp at 8000 rpm (which was the red line), and 138 ft/lbs of torque at 6500 rpm.

Linked to a five speed manual gearbox, this meant that it would produce a top speed of 140 mph, and a 0-60 mph time of 7.5 secs.

It was the first Ferrari to use both electronic ignition and rack and pinion steering.

Technical Data		206 GT
Production		1968-1969
Engine, cc		1987
Cylinders, bhp		6, 177
Torque ft/lbs		137
Top Speed mph		140
0-60 mph, secs		7.5
0-100 mph, secs		19.2
Standing 1/4 Mile, secs		15.5

THE COMPETITION

Some of the competitors of the Ferrari 206 GT included: Series 3 Jaguae E-type, Lamborghini Urraco, and Maserati Bora. Ferrari performance:

Technical Data	206 GT	Jaguar S3 E-Type	Maserati Bora	Lamborghini Urraco
Production	1968-1969	1971-1974	1971-1979	1972-1979
Engine, cc	1987	5344	4930	1994
Cylinders, bhp	6, 177	12, 314	8, 330	8, 182
Torque ft/lbs	137	349	325	130
Top Speed mph	140	145	177	134
0:60 mph, secs	7.5	6.8	6.6	7.1
0:100mph, secs	19.2	18.5	14.9	17.5
Standing 1/4 Mile, secs	15.5	14.8	14.6	15.5
