The Ferrari Dino 246 GT Sports Car

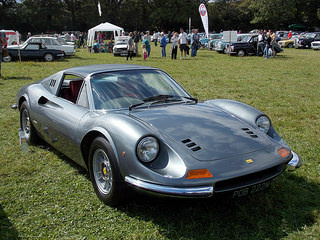

Ferrari Dino 246 GT Image

from Classic to Modern

THE CAR

The Ferrari Dino 206 GT sports car had a short production run of just one year, in which only 152 units were built.

However, although the market was impressed with the styling of the car, there was a call for a version with more performance.

Consequently, in 1969, the two seater, Ferrari Dino 246 fixed head coupe was introduced at the Turin Motor Show.

Furthermore, in 1972 at the Geneva Motor Show, the open top Dino 246 GTS Spyder was added, which featured a removable Targa top.

Once again, Pininfarina was responsible for the car's styling.

Also, as was the case with the 206 GT, the engines were built by Fiat, and the car was assembled at the Ferrari plant in Maranello.

The "246" weighed 2380 lbs, compared with the 1980 lbs of the "206", and this was due, in part, to the fact that the body panels of the latter were made of aluminium, whilst those of the former were now constructed of steel, in order to reduce cost.

Also, the wheelbase of the "246" was increased by a further 2.1 inches compared with that of the "206", although the height remained the same.

Vacuum assisted four wheel vented disc brakes, and all round coil spring independent suspension were retained from the "206".

By the time production ended in 1974, a total of 2295 units of the Ferrari Dino 246 GT sports car had been built.

Interestingly, three versions of the 246 GT were produced, and designated L, M and E variants:

The 357 "L" units built up to mid 1970 used the same wheels with a knock-off spinner as did the 206 GT, plus the addition of small front bumpers
The 507 "M" units built between mid 1970 and 1971 used alloy wheels, different wipers, added headrests, and a widening of the rear track
The 1431 "E" units built between mid 1971 and 1974 were subject to changes in gearing and fuel supply, whilst right hand drive versions of the car were now made available

Optional extras included flared wheel arches, and seats sourced from the 365 GTB/4 Daytona.

A close competitor of the 246 GT sports car was, at that time, the 2.4 litre Porsche 911S Targa, which was regarded as a touchstone in terms of performance.

THE ENGINE

The transverse mid-engined Ferrari Dino 246 GT was powered by a 2.4 litre, twin overhead cam V6 unit, with two valves per cyliinder, using an iron block and alloy heads, and with a compression ratio of 9.0:1.

Fitted with a five speed manual gearbox, three twin choke Weber 40 DCNF/6 carburettors, and electronic ignition, it developed 195 bhp at 7600 rpm, and 166 ft/lbs of torque at 5500 rpm.

This produced a top speed of 151 mph, and a 0-60 mph time of 7.5 secs.

However, the version exported to the US underwent certain changes, including the timing, which reduced the output to 175 bhp.

A noteworthy point was that the Dino's 2.4 litre V6 engine was subsequently used in other Italian sports cars, and in particular the Lancia Stratos.

Technical Data	206 GT	246 GT
Production	1968-1969	1969-1974
Engine, cc	1987	2418
Cylinders, bhp	6, 177	6, 195
Torque ft/lbs	137	166
Top Speed mph	140	151
0-60 mph, secs	7.5	7.5
0-100 mph, secs	19.2	21.5
Standing 1/4 Mile, secs	15.5	15.9

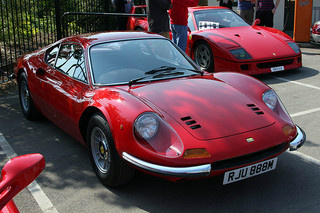

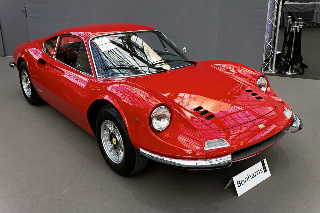

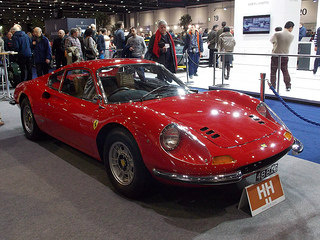

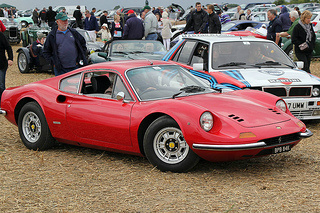

Ferrari Dino 246 GT x 5 Image

Full Screen Full Screen

THE COMPETITION

Close competitors of the Ferrari Dino 246 GT included: Porsche 911S Targa, Series 3 Jaguar E-Type, and Maserati Bora. Ferrari performance:

  Porsche Jaguar Maserati
Technical Data 246 GT 911S S3 E-Type Bora
Production 1969-1974 1972 1971-1974 1971-1979
Engine, cc 2418 2341 5344 4930
Cylinders, bhp 6, 195 6, 190 12, 314 8, 330
Torque ft/lbs 166 159 349 325
Top Speed mph 151 144 145 177
0-60 mph, secs 7.5               7.8 6.8 6.6
0-100 mph, secs 21.5 19.7 18.5 14.9
Standing 1/4 Mile, secs 15.9             15.5             14.8              14.6

SPORTS CARS FOR SALE

In terms of the second hand market, a Ferrari Dino 246 GT, in good condition, was sold at auction in the US for $165,000, whilst one in showroom condition fetched a staggering $630,000 at auction.

The Dino was an excellent example of one of the classic cars from Ferrari.
