The Lotus Elite Sports Car

Lotus Elite

Follow Me on Facebook

from Classic to Modern

Elite On The Track

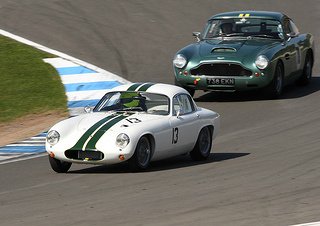

1960 Lotus Elite Really going for that bend in a Pre 1963 GT race at the 2013 Donington Historic Festival

1962 Lotus Elite

Lotus Elite

The Lotus Elite sports car was created by Colin Chapman in 1956 as a street car, in the first instance.

The first two door, two seater prototype was presented at the 1957 Earls Court Motor Show in London.

Following its debut, the Elite spent a further year undergoing a programme of development prior to production.

It was the very first production car to be built with a fibreglass monocoque construction.

It succeeded the Lotus Seven, with its sheet metal body and tubular space frame chassis.

On the other hand, the Elite was a stylish, fixed head coupe, with a drag coefficient of only 0.29, which was astonishingly low for that time.

Also known as the Lotus 14, it was launched in 1959, and was conceived as a competition sports car.

The standard version used an aluminium, 1216 cc, straight 4-cylinder, overhead cam, Coventry Climax engine, developing 71 bhp, and with a single SU carburettor.

It had four wheel, 9.5 inch Girling disc brakes, without servo assistance, had a top speed of 113 mph, and a 0-60 mph time of 13.2 secs.

The standard gearbox was a four speed MG unit, but a four speed all synchromesh, close ratio ZF box was offered as an optional extra.

The Elite had the unrivalled handling of the Lotus Seven, presented in a more traditional body styling.

The four wheel independent suspension used coil springs at the front, and a form of MacPherson strut at the rear. The steering was by Rack and Pinion.

A higher performance, special equipment (SE) Lotus model was introduced in 1960, and featured a ZF gearbox, two SU carburettors, and a modified exhaust manifold, which developed 85 bhp.

This was followed by the Elite Super 95 variant, which developed 95 bhp from a higher tuned engine, with a higher compression ratio, and a modified camshaft.

Limited edition variants included the Super 100 and Super 105 models, fitted with two, twin choke Webber 40DCOE carburettors, developing 130 bhp and 137 bhp respectively, and designed specifically for racing.

Technical Data	Series 1	Series 2	Series 2E
Production	1957-1960	1960-1963	1960-1963
Engine, cc	1216	1216	12168
Cylinders, bhp	4, 71	4, 83	4, 85
Torque ft/lbs	77	75	75
Top Speed mph	113	118	118
0-60 mph, secs	13.2	11.1	10.7
0-100 mph, secs	-	-	-
Standing 1/4 Mile, secs	-	-	-

Technical Data	Super 95	Super 100	Super 105
Production	1962	1962	1963
Engine, cc	1216	1216	1216
Cylinders, bhp	4, 95	4, 100	4, 105
Torque ft/lbs	74	74	74
Top Speed mph	125	130	137
0-60 mph, secs	7.9	6.6	6.4
0-100 mph, secs	-	-	-
Standing 1/4 Mile, secs	-	-	-

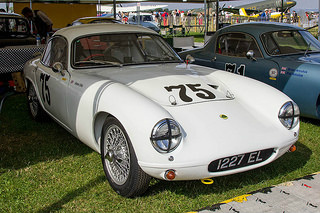

1960 Lotus Elite

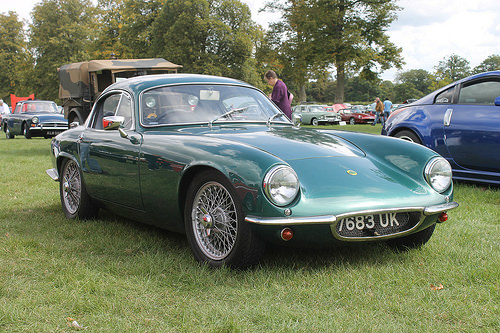

1961 Lotus Elite

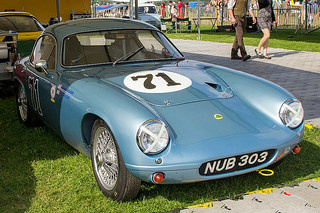

1962 Lotus Elite

Full Screen Full Screen

Full Screen

The Lotus Elite sports car used a glass reinforced plastic (GRP) monocoque body structure, with the front of the construction incorporating a steel subframe, which supported the the engine and front suspension.

Maximar Mouldings, a well known boat builder, were given the initial contract to build the first 250 body structures, giving rise to the Series 1 Elite.

This used a single SU carburettor, had a compression ratio of 10.0:1, and gave an overall fuel consumption of 40 mpg.

As a result of early problems, this work was subsequently handed over to the Bristol Aeroplane Company, who produced both a lighter and stronger structure, which was designated the Series 2.

This model was fitted with two SU carburettors.

The Series 2 sports car featured an improved rear suspension, with upgrades being made to the interior panels, as well as increasing the level of engine tuning.

However, there were early failures at Bristol in relation to the mounting points for the differential and rear suspension, but these were soon rectified by the introduction of metal reinforcements at the weak points.

Subsequently, production methods were refined so that such inserts were no longer required.

However, the problems associated with GRP were, at that time, still not fully understood, with the result that it was not uncommon for the suspension attachment points to pull away from the fibreglass structure.

Further, a number of components situated in the drivetrain were subjected to high levels of stress, which necessitated regular re-greasing.

The Elite was offered as a kit car, which was regarded as a mistake for a company regarding itself as a quality manufacturer.

It has been estimated that Lotus lost £100 on every Elite built, due to the fact that the car was underpriced, quality control was poor, and the production process was too expensive for a company that was, in effect, underfunded.

Its racing achievements included six Class wins at the Le Mans 24 hour race, and two wins in the Index of Thermal Performance.

In terms of Lotus models, a 1960-1961 Elite is still in demand on the second hand market, if you can find one. In fact, as a used Lotus, it can sell for anything from £35,000 to £80,000.

Between 1959 and 1963, when production ended, a total of 1,030 Lotus Elites were built.

It was succeeded by the Lotus Elan sports car in 1963.
